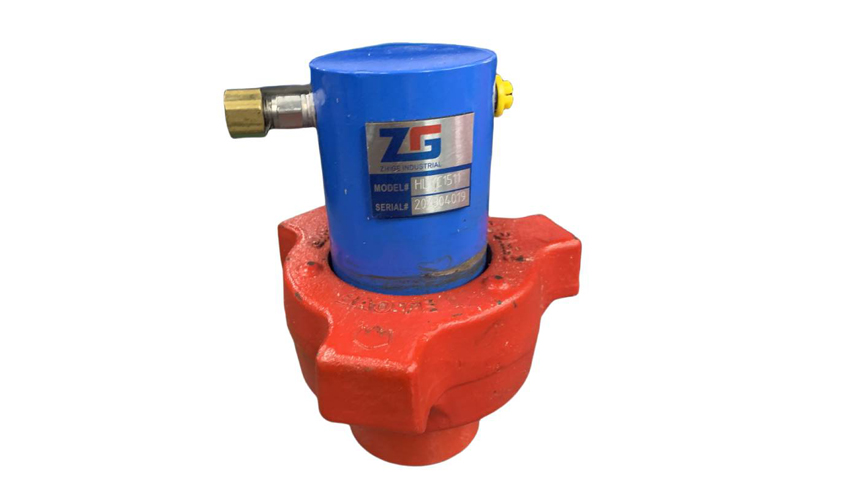

HLYC151

The function of the sensor body is to isolate the mud from the hydraulic oil, and then transmit the mud pressure to the meter head to show its true mud pressure

FEATURES

Capable of measuring pressures up to 10,000 psi
Available with 1502 or 2202 union and sub for either standard or H2S service
Proven to work in 150% of working pressure
Available with threaded or weld-on type sub
Easy to repair in the field with available seal kits, recharge kits, and diaphragms

ORDER SPECIFICATION

Sensor Type
Hammer Union Type
Hose Length (up to 140 ft.)
