ZM160112A

COMPOUND PRESSURE GAUGES

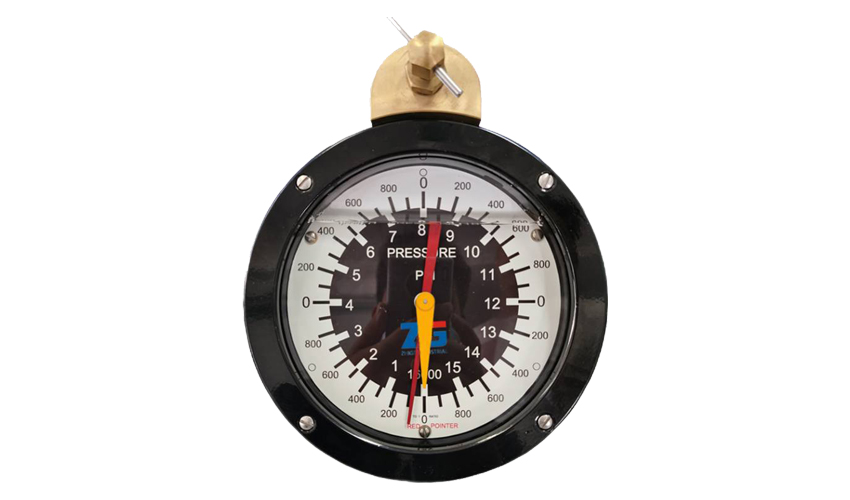

The compound pointer pressure gauge has two pointers, the yellow is the main pointer and the red is the auxiliary pointer. The main needle can rotate 360 degrees in all directions to achieve full-scale indication performance. The resolution of the auxiliary needle is 4:1, which can indicate subtle pressure changes. Four rotations represent a full scale of the dial.

FEATURES

Operating temperature range: -40C to 65C (-50 to 150F)
+/-1% of Full Scale
Available in Box mount or Panel Mount
Pressures up to 16,000 psi, 120 Mpa, 1200 Bar
6″ Gauge Face
Custom hose lengths available
Custom Logo Dials available
User adjustable Damping

ADVANTAGES

Dual pointer display can show subtle changes in pressure. The pressure gauge reading can be read more accurately.

ORDERING SPECIFICATIONS

Type of Sensor
Type of Hammer Union
Hose Length
Gauge mounting
