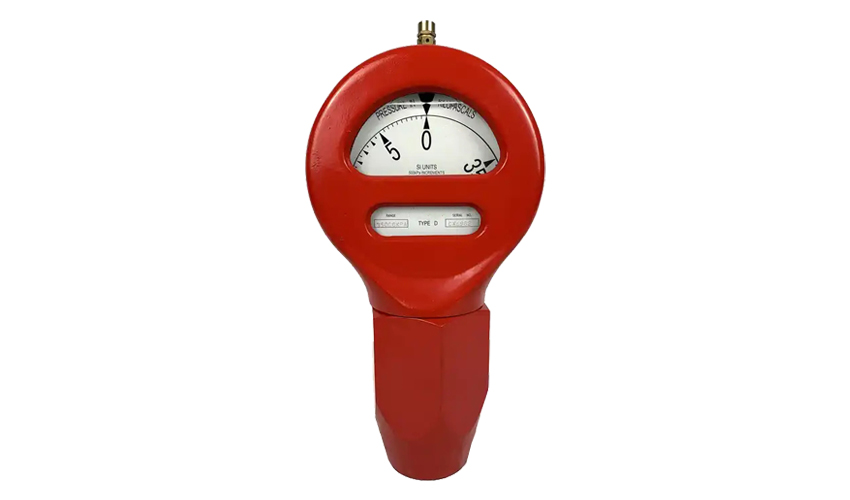

TYPE D

Dimensions: 7-5/8” diameter dial case and 14-3/4” in height
Pressure range: 0 – 6,000 psi(1000 psi, 3000 psi, 5000 psi, 6000 psi)
Temperature range: -50 to +65 Celsius degree(-50F to +150F)
Standard end connection: 2” NPT female threaded connection

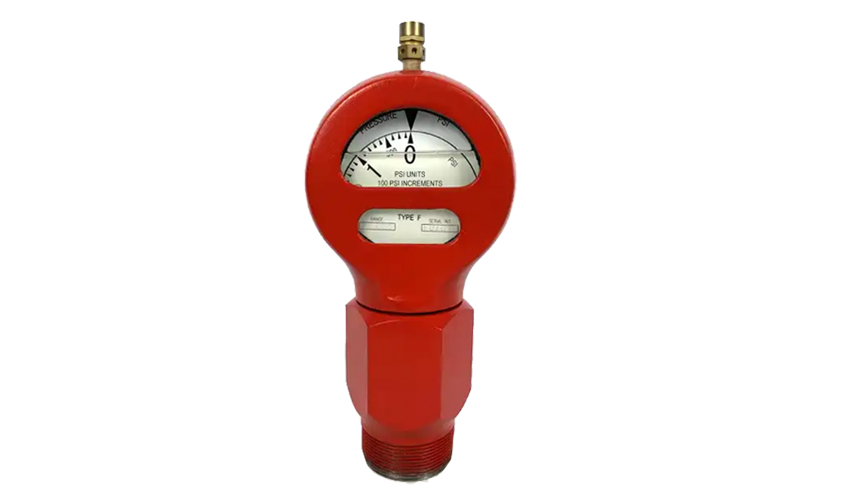

TYPE F

• Dimensions: 4-7/8” diameter dial case and 9-7/8” in height.
• Pressure range: 0 – 20,000 psi
• Temperature range: -50 to +65 Celsius degree(-50F to +150F)
• Standard end connection: 2” NPT threaded male and 1” NPT threaded female connection.
• Using for pressure indication of any liquid such as mud,water and oil

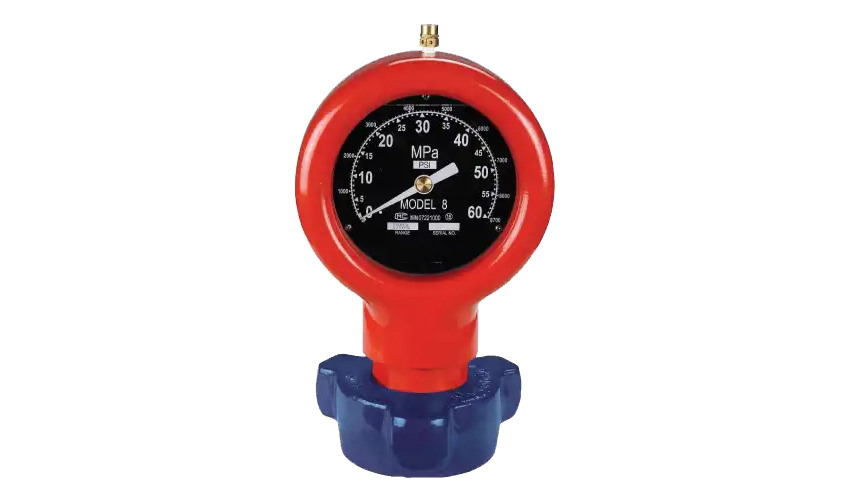

Model 8

Standard end connection: combination 2” line pipe threaded male with a 1” line pipe threaded female connection
• Dimensions: 8-1/8” diameter dial case and 13-1/4 inch in height
• Pressure range: 0 – 6,000 psi and 0 – 10,000 psi
• Temperature range: -50 to +65 Celsius degree(-50F to +150F)
• Large 6” dial face incorporates a tough, impact resistant acrylic lens
• Dual unit-of-measure dial face available
• Dual face pressure readings in PSI / kg/cm2, kPa / PSI and Bars / PSI.

ORDERING SPECIFICATIONS

• Pressure capacity
• Metric, English or dual scale dial reading
• Standard 2”NPT, Hammer Union or Flange type
• Standard or H2S service
• Type or model of mud gauge
