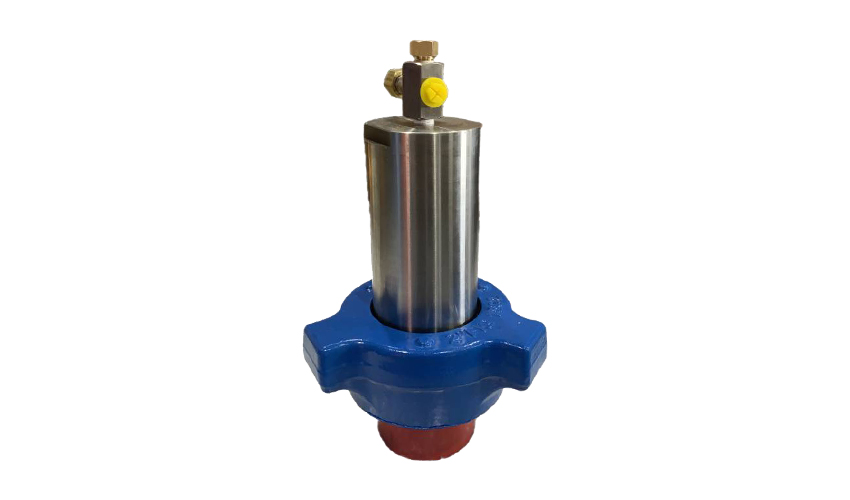

PGS1112-A

Rubber diaphragm sensor are mainly used for pressure monitoring of oil pipeline risers, mud pumps and other products, as well as some occasions that require remote pressure measurement. The inside of the product is filled with clean hydraulic oil, separated by a rubber cup, and the external measured medium cannot enter the inside of the sensor, thus greatly extending the service life of the sensor. The diaphragm design provides "double protection", so the sensor will work even if the plastic cup breaks.

FEATURES

Capable of measuring pressures up to 15,000 psi
Available with 1502 or 2202 union and sub for either standard or H2S service
Proven to work in 150% of working pressure
Available with threaded or weld-on type sub
Easy to repair in the field with available seal kits, recharge kits, and diaphragms

ORDER SPECIFICATION

Sensor Type
Hammer Union Type
Hose Length (up to 140 ft.)
