HRYB1011

Applied to fracturing truck,Cementing cement truck

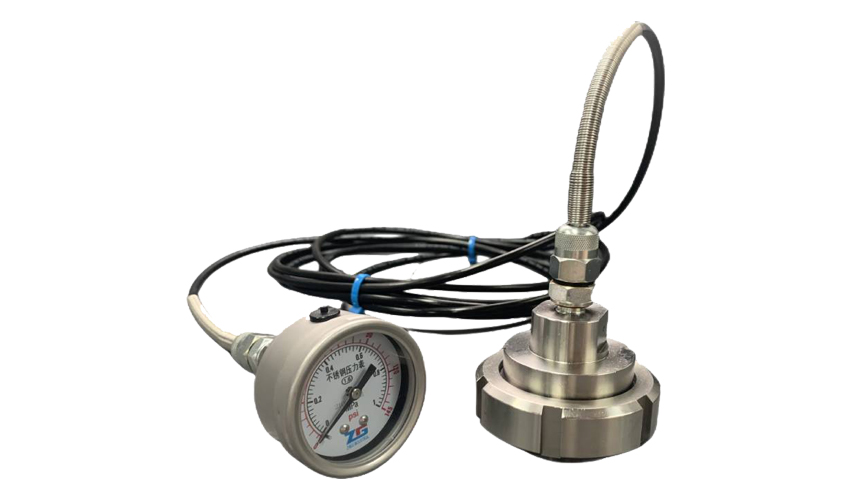

Union type seismic pressure gauge is mainly suitable for measuring pulsating pressure, such as used in fracturing and cementing equipment in oil production. It can also be used to measure static pressure.
The damping mechanism inside the instrument has a good damping effect on pressure pulsation within the entire measurement range, and does not require adjustment during use. Therefore, the instrument not only indicates smoothly and clearly when measuring violent pulsating pressure, but also can withstand instantaneous pressure shocks (such as sudden pressure relief). The instrument has good anti-seismic performance. The filling fluid inside the instrument head enables it to work normally in a strong vibration environment and avoids excessive swing of the pointer due to vibration.
The instrument has the characteristics of preventing "clogging", and the measured medium part enters the inside of the instrument, so it can be used in medium environments with high viscosity, high particle size, and easy solidification, such as mud, cement, etc. The instrument has reliable sealing and anti-corrosion measures and can work in harsh environments.

FEATURES

Applied to fracturing truck /Cementing cement
truck/coiled tubing truck
·The accuracy: 1.0 /1.6/ 2.5
·The measurement: 0-0.01~0-40MPa
·Diameter: 40/63/100mm
·Installation: Bracket or panelmounting
·Connectorthread : M14*1.5 /1/4NPT /1/8NPT

FEATURES

Applied to fracturing truck /Cementing cement
truck/coiled tubing truck
·The accuracy: 1.0 /1.6/ 2.5
·The measurement: 0-0.01~0-40MPa
·Diameter: 40/63/100mm
·Installation: Bracket or panelmounting
·Connectorthread : M14*1.5 /1/4NPT /1/8NPT

ORDERING SPECIFICATIONS

The accuracy
The measurement
Diameter
Mounting way
Connection thread size
