Product Number:HZCB

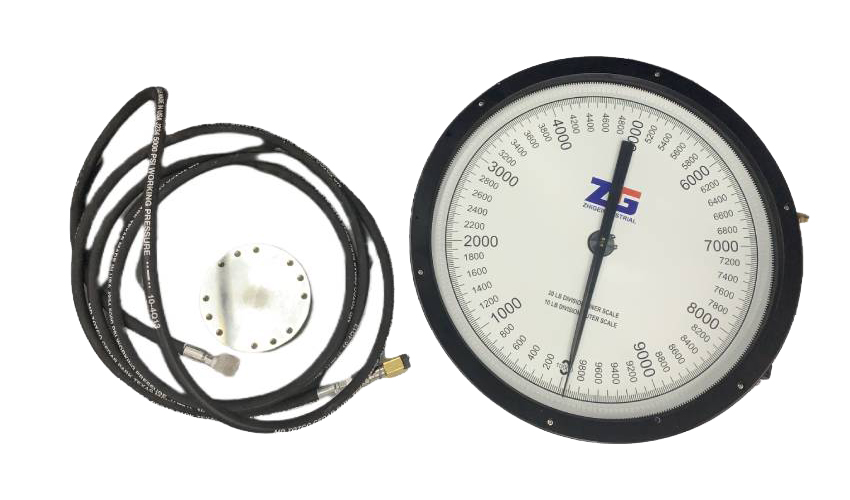

Bulk Tank / Surge Can Indicator System is specifically designed for bulk tank applications with a 2 to 1 or 3 to 1 load distribution and is ideal for bulk weight weighing of drill mud, chemicals, and cement. Hydraulic, self-aligning, compression load cells are typical of mud and friction free cement applications onshore, whereas, tension cylinder or load cells are typical of offshore rigs where mud and cement tanks are located below deck.

FEATURES

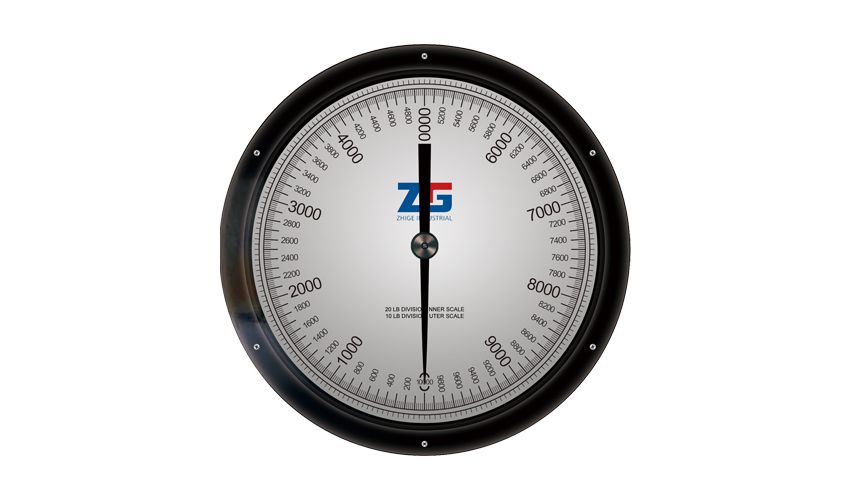

6″ or 12”,16",18",8-1/2" dial face available with customizable logos
Capacities up to 300,000 lbs for a 2:1 load distribution
Capacities up to 450,000 lbs for a 3:1 load distribution
25 foot hose
Compression or tension loadcell
Metric equivalents in Kg, DaN, tons, and metric tons are available
Give highly accurate readings for weighing of chemicals, drilling muds, and cement on land and offshore rigs.

ADVANTAGES

Easily visible dial face for clear reading
Easy installation, no external power source is needed
Fluid filled indicator to reduce corrosion and vibrations
Adjustable damper for adjusting pointer sensitivity
The system is user-friendly, and can be managed easily by any maintenance personnel
Replaceable gaskets, glass, diaphragms and fluid available for easy field repai

ORDERING SPECIFICATIONS

Capacity of Indicator
Tank Ratio
Hose Length
