Product Number:HLJ011541

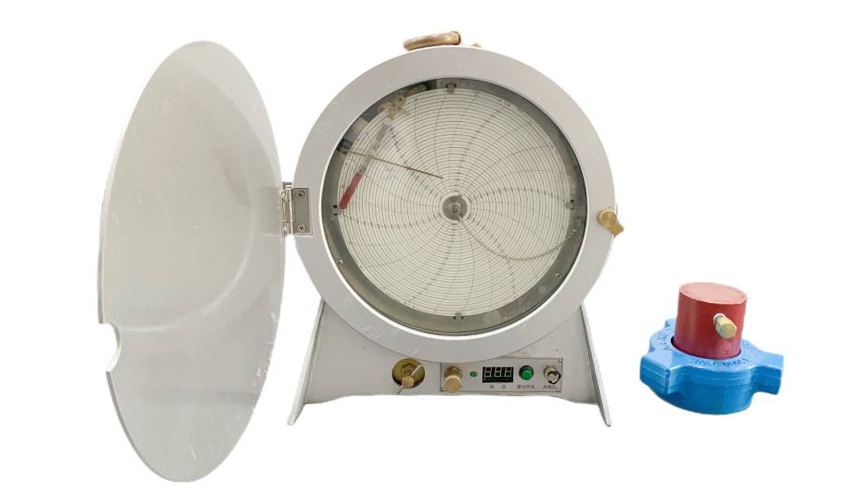

The recorder system mainly consists of three parts: display recording system, sensor and high- pressure pipeline.  The sensor is used to sense the measured pressure, and transmits it to the spring
tube inside the display and recording system through the high-pressure pipeline, causing it to elastically deform, and is amplified by the transmission mechanism and then indicated by the indicating device to indicate the measured pressure value.

FEATURES

Comes in Truck Mount or Portable variations.
Available in 1 or 2 pen versions.
Available with multi speed clocks in 1 hr. , 4 hr. , and 24 hr.  versions and in battery operated or manual wind versions.
Can be calibrated for use up to 20,000 psi.
Highly accurate, calibrated to within 0.5% of full scale accuracy.
Available in Metric or English versions.
Available with or without gauges built into base.
Optional 1/4” high pressure hose and disconnects available.
Optional diaphragm protector, 1:1 piston isolator or debooster available (specify type needed, 1502 or 2202 union and sub, and standard or H2S service when ordering).
Comes with a charging cable
Operating temperature: Allowable ambient temperature: Charging :0°C~+45°C, discharging :-20~
+60°C
Core surface temperature limit: charging: 60C, discharge: 80°C

ADVANTAGES

1. Compared with the traditional recorder, the intuitive power display can judge the use of the recorder in advance and reasonably arrange the charging time
2. Full 4 hours, a charge, can be used for 15-20 days.
3. Battery life: 600 cycles
4. Customizable battery life
5. logo can be customized

ORDERING SPECIFICATIONS

Capacity of Recorder
Style of Recorder
Type of Sensor
Length of Hose
Type of Clock
Speed of Clock
Number of Systems
