Product Number:HLYZ

rotary torque system is designed to help the driller during coring, milling, and reaming operations.  The system also helps to avoid twist-offs and increases bit life by showing the driller when the drill string is torqued to unsafe levels.

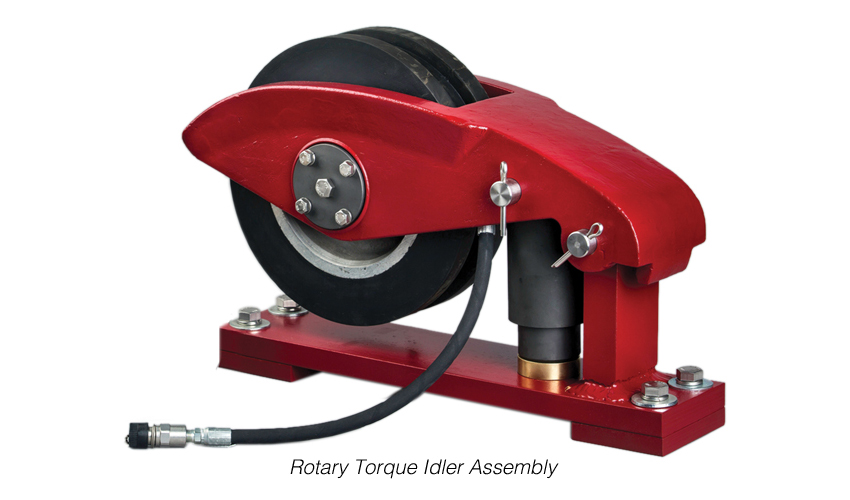

The system includes indicator with bracket, 2 ft. and 14 ft. hoses with disconnects, and idler with wheel.  The indicator’s capacities are measured in points and are a relative indication of torque.  The system is available in box mount or panel mount styles.

FEATURES

6” gauge, dial face with colorful custom logos
Available in 500 and 1,000 points
Gauge has operator-adjustable dial to zero out drill string in order to monitor torque at the bit
Standard 2 ft. and 14 ft. hose, with other hose lengths available

ADVANTAGES

Gauge damper minimizes pointer oscillations caused by drilling and drill string vibration, ensuring accurate readings and increasing the life-span of the gauge.
Helps driller know when to change drill bits by indicating hole conditions and torque patterns.
Increases safety by providing warnings about possible twist-offs, locked cones on the bit, out-of-gauge holes, and formation changes.
Connects easily to Zhi Ge drilling recorders.

ORDERING SPECIFICATIONS

Capacity of Indicator (500 Point or 1,000 Point)
Chain Size or Wheel Type
Style of Indicator
Length of Hoses (standard 2 ft. and 14 ft.)
