Product Number:HLYZ

Universal tong line pull system is designed to assure uniform and proper make-up of the string by indicating accurate torque applied to each joint when running pipe or casing.  Our tong torque gauges can help reduce drill collar and tool joint failure resulting from improper make-up.

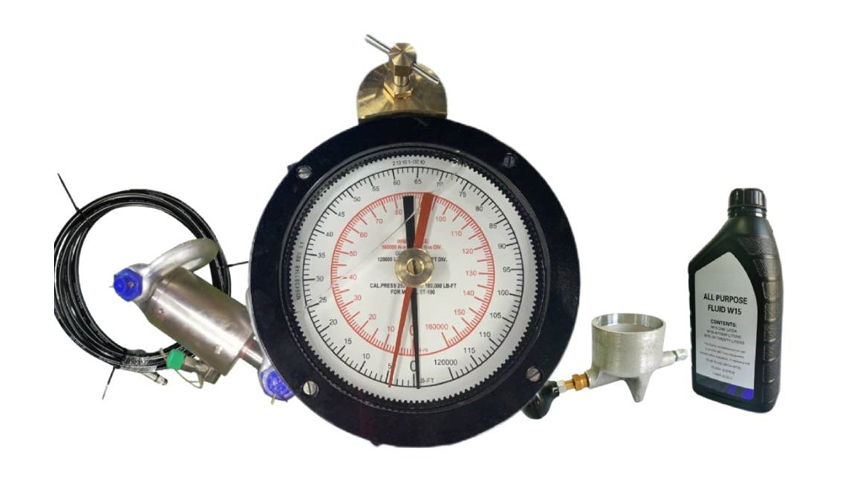

The system includes a 6” tong torque indicator with bracket, a standard 25 ft. hose, and a tension load cell.  The convenient mounting design allows the gauge to be mounted in a driller’s console, in a weight indicator box, or stand alone.

FEATURES

6” dial face with colorful custom logos
Standard capacities up to 30,000 lbs.
Box mount or panel mount styles available
Metric equivalents available
Adjustable target pointer can be set to the desired capacity so the driller can work to a clear mark

ADVANTAGES

Easily visible 6” dial face allows clear viewing from long distances
Easily mounted in various locations: driller’s console, weight indicator box, or stand alone
Fluid filled indicator reduces shock, vibration, and corrosion
Adjustable damper allows for smooth pointer movement under intense situations
The tension cylinder includes a fully machined stainless steel piston rod that gives added protection against harsh saltwater environments, ensuring a long service life and minimum maintenance.

ORDERING SPECIFICATIONS

Capacity of Indicator
Length of Hose
Style of Indicator
