HRYB1012

This style of gauge is ideal for mud pumps, stand pipes, choke manifolds and pump trucks and can be used in cementing, fracturing, and acidizing gravel-packing trucks, blowout preventers, and mud pump pressure gauge applications.

FEATURES

6″ dial
Reduce shock and vibration
Blow-out plug safety feature for over-pressure situation
Replaceable diaphragm cup , check valve and damper assembly
Standard capacities:
0 – 3,000 p.s.i.
0 – 5,000 p.s.i.
0 – 6,000 p.s.i.
0 – 10,000 p.s.i.
0 – 15,000 p.s.i.
Additional pressure ranges: kPa, kg/cm², MPa, and BAR units of measure.
Dial available dual scale divisions

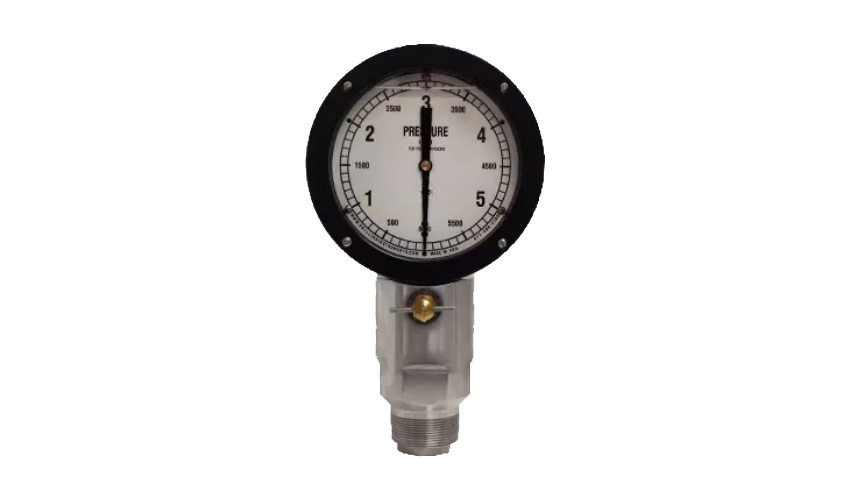

Threaded line pipe gauge has 2" threaded connection

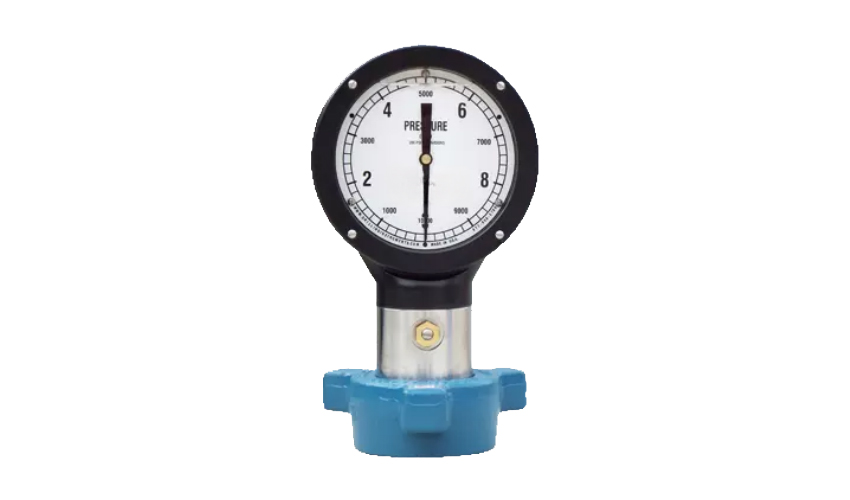

Hammer union style is 2” 1502

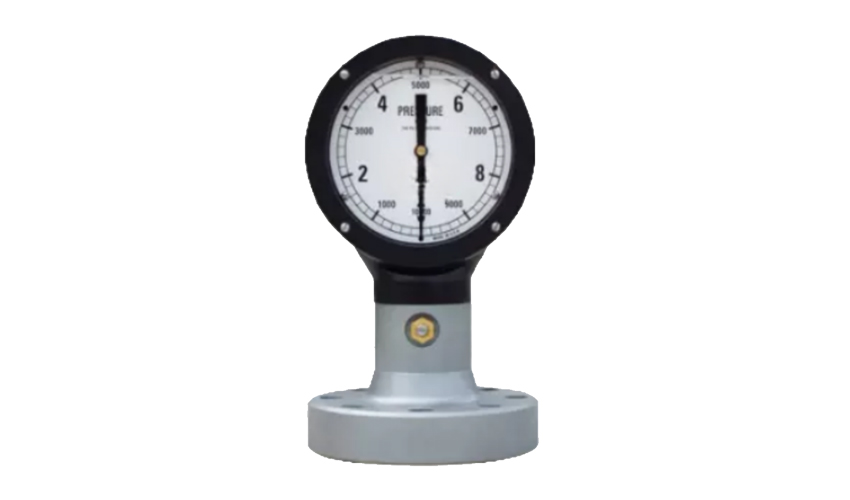

10M and 15M flange-style unitized pressure gauge ring groove is BX-152
5M flange-style unitized pressure gauge ring groove is R-24

ADVANTAGES

These gauges stand up to over-pressure situations, kicks, and rig vibrations

ORDERING SPECIFICATIONS

Pressure capacity
Metric, English or dual scale dial reading
Standard 2”NPT or Hammer Union
Standard or H2S service
