FEATURES

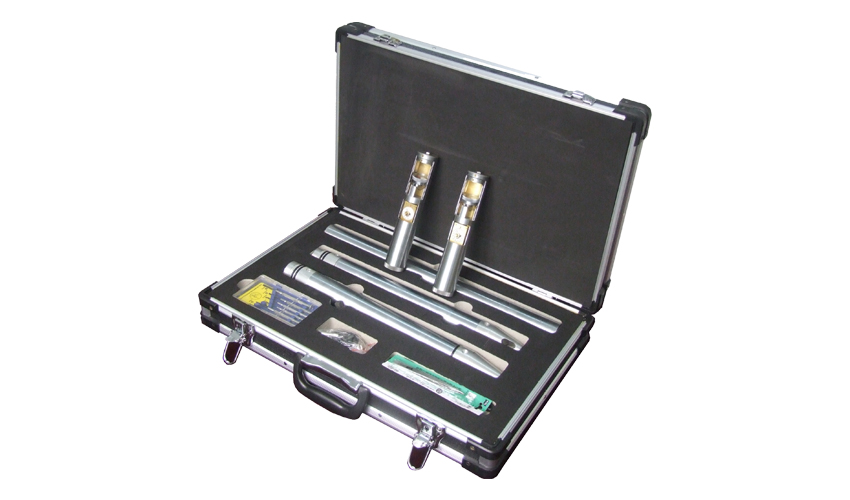

KXP-2 small diameter compass inclinometer is specially used to measure the top Angle and azimuth Angle in the drilling process, and can be widely used in engineering, hydrology, hydropower, coal mine, metallurgy, oil field, geology and other logging fields

ADVANTAGES

1. Top Angle measurement range: 0° ~ 50°, error: ±1° (0° ~ 30°) Error: ±2° (> 30°)
2. Azimuth measurement range: 0° ~ 360°, measurement error: ±4° (top Angle ≥4°)
3. Sealing performance: withstand hydraulic pressure not less than 15Mpa
4. Shape and weight: Ø40mm×1230mm, weight about 6kg
5. Working time: Mechanical timing device M large working time is 120 minutes, M small working time is 20 minutes
